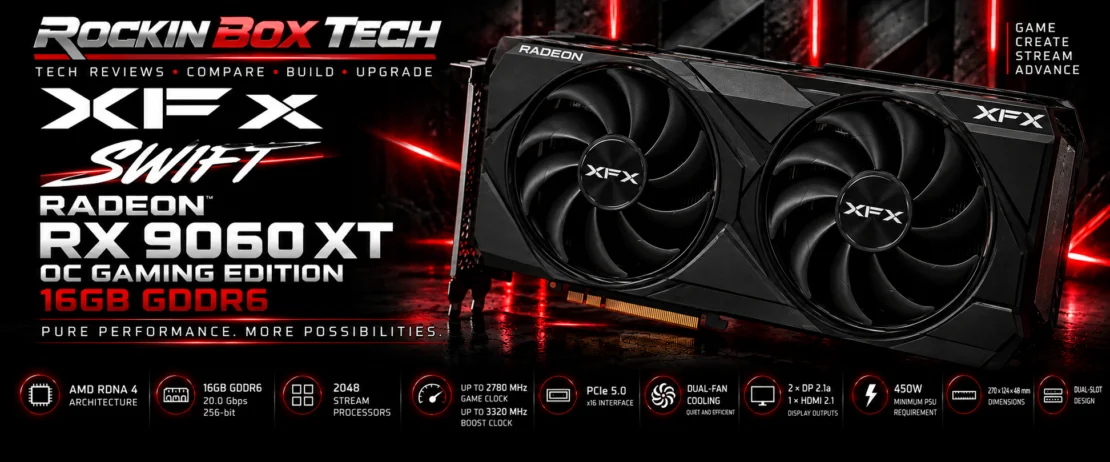

XFX Swift AMD Radeon RX 9060 XT OC Gaming Edition 16GB
Quick Product Overview
The XFX Swift AMD Radeon RX 9060 XT OC Gaming Edition 16GB is a factory-overclocked implementation of AMD's RDNA 4-based Radeon RX 9060 XT graphics processor.
XFX combines 32 compute units and 2048 stream processors with 16GB of 20 Gbps GDDR6 operating across a 128-bit memory interface. The card is specified for a game clock of up to 2780 MHz and boost clock of up to 3320 MHz.
This Swift model uses a dual-fan, dual-slot cooling design and measures 270 mm long. It requires one conventional 8-pin PCIe power connection, with XFX specifying a 450W minimum power-supply requirement.
Key Specifications
| Model Number | RX-96TSW16BQ |
|---|---|
| Graphics Processor | AMD Radeon RX 9060 XT |
| Architecture | AMD RDNA 4 |
| Compute Units | 32 |
| Stream Processors | 2048 |
| Ray Accelerators | 32 |
| AI Accelerators | 64 |
| Base Clock | Up to 1900 MHz |
| Game Clock | Up to 2780 MHz |
| Boost Clock | Up to 3320 MHz |
| Video Memory | 16GB GDDR6 |
| Memory Speed | 20 Gbps |
| Memory Interface | 128-bit |
| Memory Bandwidth | Up to 340 GB/s — XFX specification |
| Interface | PCI Express 5.0 |
| DisplayPort | 2 × DisplayPort 2.1 |
| HDMI | 1 × HDMI 2.1 |
| External Power | 1 × PCIe 8-pin |
| Minimum PSU | 450W |
| Card Profile | Dual-slot |
| Thermal Solution | 2-fan |
| Dimensions | 270 × 124 × 48 mm |
| DirectX | DirectX 12 Ultimate |
Performance & Use-Case Information
1440p Gaming
AMD and XFX position the RX 9060 XT as a graphics platform for modern 1440p gaming. Actual frame rates depend heavily on the title and selected graphics settings.
16GB Graphics Memory
The 16GB memory capacity provides substantial room for high-resolution textures and compatible GPU-accelerated workloads.
Factory Overclock
XFX raises this model to a game clock of up to 2780 MHz and a boost clock of up to 3320 MHz.
RDNA 4
AMD's RDNA 4 architecture incorporates current-generation graphics, ray-tracing and AI acceleration hardware.
FSR Technologies
Compatible software can use AMD FidelityFX Super Resolution technologies, including features developed for RDNA 4 hardware.
Media Support
AMD documents hardware support for modern media workloads, including AV1 encode and decode on the RX 9060 XT platform.
Cooling & Card Design
Dual-Fan Cooling
XFX equips this Swift model with a two-fan thermal solution designed around the RX 9060 XT GPU.
Dual-Slot Profile
The card uses a dual-slot profile, helping keep the installation footprint more compact than many larger high-performance GPUs.
270 mm Length
At 270 mm long, the Swift is relatively manageable for many mid-tower systems, although chassis clearance should still be verified.
48 mm Thickness
The published 48 mm thickness should be considered when planning motherboard expansion-slot and adjacent-card clearance.
Platform & Compatibility
PCI Express 5.0
XFX specifies PCI Express 5.0 for the Swift RX 9060 XT. AMD identifies the RX 9060 XT platform as PCIe 5.0 x16.
450W Minimum PSU
XFX specifies a 450W minimum power-supply requirement for this exact Swift model.
Single 8-Pin Power
The card uses one standard PCIe 8-pin supplementary power connector, simplifying compatibility with many existing quality power supplies.
270 mm Card Length
Verify chassis clearance for the card's 270 × 124 × 48 mm dimensions.
Modern Display Outputs
Two DisplayPort 2.1 connections and one HDMI 2.1 connection provide current-generation display connectivity.
AMD Software
AMD Software: Adrenalin Edition provides supported driver, graphics, display, recording and performance-management features.
Works Best With
Modern Gaming CPU
A capable current processor helps keep CPU-side limitations from unnecessarily restricting performance at high frame rates.
Quality 450W+ PSU
XFX specifies a 450W minimum PSU. Builders should also account for processor power and the requirements of the complete system.
1440p Gaming Monitor
The RX 9060 XT is positioned particularly well for modern 1440p gaming, including compatible high-refresh displays.
Memory, Power & Display Connectivity
16GB GDDR6
Sixteen gigabytes of dedicated graphics memory provides substantial capacity for modern games and graphics workloads.
20 Gbps Memory
XFX specifies 20 Gbps GDDR6 operating across a 128-bit memory bus.
PCI Express 5.0
The current-generation PCI Express interface connects the graphics processor to compatible host platforms.
1 × 8-Pin Power
A conventional PCIe 8-pin connection supplies the card's supplementary power.
2 × DisplayPort 2.1
Two DisplayPort connections support compatible modern high-resolution and high-refresh displays.
1 × HDMI 2.1
The HDMI connection provides additional compatibility with modern monitors and televisions.
What Published Technical Information Shows
Factory-Overclocked XFX Model
XFX specifies up to 2780 MHz game clock and up to 3320 MHz boost clock for this Swift OC Gaming Edition.
2048 Stream Processors
XFX and AMD document 2048 stream processors and 32 compute units for the RX 9060 XT GPU.
16GB / 128-Bit Memory
The card combines 16GB of 20 Gbps GDDR6 with a 128-bit graphics-memory interface.
Compact Dual-Fan Format
XFX packages the card into a 270 mm dual-fan, dual-slot design.
Simple Power Requirement
One PCIe 8-pin connector and a 450W minimum PSU specification make power planning relatively straightforward.
RDNA 4 Features
AMD's RX 9060 XT platform includes RDNA 4 ray accelerators, AI accelerators and support for current Radeon software technologies.
Where Research Agrees & Differs
Documented Hardware
XFX documentation establishes this model's 16GB GDDR6 memory, 2048 stream processors, 32 compute units, factory-overclocked frequencies, dual-fan cooler and physical dimensions.
Published Results Vary
Game and application results vary according to processor, driver version, title, graphics settings, resolution, cooling and test methodology.
Strengths & Limitations
Strengths
- AMD RDNA 4 architecture
- 16GB GDDR6 graphics memory
- 2048 stream processors
- 32 compute units
- Factory-overclocked XFX configuration
- Up to 3320 MHz boost clock
- PCI Express 5.0
- Compact dual-fan design
- Dual-slot profile
- Single 8-pin power connector
- 450W minimum PSU requirement
- DisplayPort 2.1 and HDMI 2.1 connectivity
Limitations & Planning Considerations
- 128-bit graphics-memory interface
- Three physical display outputs on this XFX model
- Actual boost frequency varies with operating conditions
- 1440p results vary significantly by title and settings
- Ray-tracing performance depends on workload and settings
- 270 mm length still requires chassis-clearance verification
- Retail pricing and availability can change quickly
Upgrade Considerations
Check Case Clearance
Verify support for the 270 × 124 × 48 mm card dimensions, particularly in compact cases or systems with front-mounted cooling.
Check PSU Capacity
XFX specifies a 450W minimum PSU. The complete system's processor and component requirements should also be considered.
Check Display Requirements
This specific model provides two DisplayPort outputs and one HDMI output, so multi-monitor builders should plan around three physical ports.
Alternatives to Consider
SAPPHIRE PULSE RX 9060 XT 16GB
Another RDNA 4 RX 9060 XT implementation with 16GB GDDR6, useful for comparing cooling design, dimensions and current pricing.
ASRock RX 9060 XT Challenger 16GB
Another 16GB RX 9060 XT board-partner implementation for comparing cooler design, physical size and availability.
GeForce RTX 5060 Ti 16GB
NVIDIA's 16GB RTX 5060 Ti provides an alternative platform for comparing raster performance, ray tracing, software features and GPU-accelerated applications.
Who Is It Best For?
1440p Gaming Builds
Users building around modern 1440p gaming with a substantial 16GB graphics-memory allocation.
Compact Performance Builds
Systems that benefit from a relatively manageable 270 mm dual-fan, dual-slot graphics card.
Conventional PSU Builds
Buyers who prefer a graphics card using one standard PCIe 8-pin power connection rather than a 16-pin connector.
Rockin Box Tech Research Summary
The XFX Swift AMD Radeon RX 9060 XT OC Gaming Edition 16GB combines AMD's RDNA 4 RX 9060 XT GPU with 16GB of GDDR6 and XFX's compact dual-fan Swift cooling design.
XFX specifies 32 compute units, 2048 stream processors, a 20 Gbps memory clock, 128-bit memory interface, up to 2780 MHz game clock and up to 3320 MHz boost clock.
The card measures 270 × 124 × 48 mm, occupies a dual-slot profile and uses one conventional PCIe 8-pin power connection. XFX specifies a 450W minimum system power supply.
For buyers researching a 16GB graphics card primarily for modern 1440p gaming, this XFX Swift combines substantial graphics memory, RDNA 4 features and a comparatively compact dual-fan form factor.
Research Sources
XFX
Swift AMD Radeon RX 9060 XT OC Gaming Edition 16GB official specifications, model number, clock speeds, memory, cooling, dimensions, outputs and power requirements.
AMD
Radeon RX 9060 XT architecture, compute configuration, graphics technologies, media capabilities and platform information.
Research Disclosure
Products are not necessarily physically tested by Rockin Box Tech.
Graphics performance, clock speeds, temperatures, acoustics, power consumption and application performance can vary according to processor, motherboard, memory, BIOS, graphics driver, operating system, case airflow, cooling, power configuration, application or game version, graphics settings, resolution and operating conditions.
Product specifications, firmware and driver support, pricing and availability may change after this review is published.
