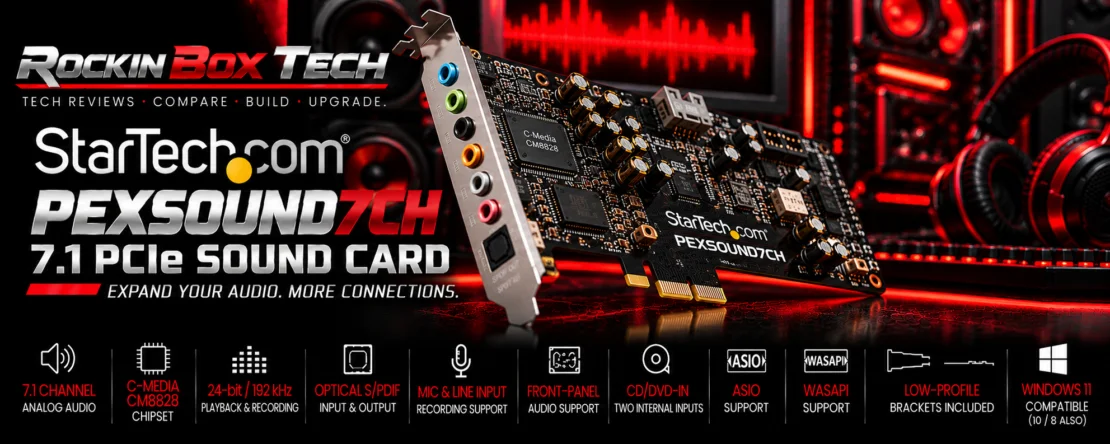

StarTech PEXSOUND7CH 7.1 PCIe Sound Card Review

A practical internal PCIe audio expansion card providing 7.1-channel analog sound, optical S/PDIF input and output, 24-bit / 192 kHz playback and recording, and current Windows support.

Internal PCIe 7.1 Channels 24-bit / 192 kHz Optical In & Out ASIO / WASAPI Windows 11

What It Is

The StarTech PEXSOUND7CH is an internal PCI Express sound card designed primarily as a practical audio expansion solution rather than a premium gaming or audiophile product.

It uses the C-Media CM8828 chipset and provides up to 7.1-channel analog output together with optical S/PDIF input and output. StarTech specifies playback and recording at resolutions up to 24-bit / 192 kHz.

Its combination of analog surround, digital input and output, microphone and line inputs, front-panel audio support and low-profile installation hardware makes it particularly useful for PCs that need additional audio connectivity.

Modern-PC compatibility: StarTech's current documentation explicitly lists Windows 11, Windows 10 and Windows 8 compatibility. That allows the PEXSOUND7CH to meet the modern-PC requirement for this Rockin Box Tech review category.

Key Specifications

Model	StarTech PEXSOUND7CH
Interface	PCI Express x1
Chipset	C-Media CM8828
Audio Channels	Up to 7.1-channel analog output
Maximum Playback	Up to 24-bit / 192 kHz
Maximum Recording	Up to 24-bit / 192 kHz
Signal-to-Noise Ratio	Approximately 92 dB A-weighted at front output
Analog Inputs	Stereo microphone and stereo line input
Digital Input	Optical S/PDIF input
Digital Output	Optical S/PDIF output
Front-Panel Audio	Intel HD Audio front-panel support
Internal Auxiliary Inputs	Two CD/DVD-IN connections
ASIO	Supported
WASAPI	Supported
Form Factor	Standard profile with low-profile brackets included
Windows Compatibility	Windows 11, Windows 10, Windows 8 and Windows 7 listed by StarTech

7.1-Channel Analog Audio

The PEXSOUND7CH provides analog outputs for front, side surround, center/subwoofer and rear surround channels, allowing a compatible PC to drive a traditional 7.1-channel analog speaker system.

Direct Analog Surround

Users with multichannel PC speakers can connect directly to the sound card rather than depending on HDMI or an external audio device.

Existing Speaker Systems

This can be particularly useful when upgrading a PC while retaining an older but still functional analog surround speaker system.

24-bit / 192 kHz Playback & Recording

StarTech specifies support for audio playback and recording at resolutions up to 24-bit / 192 kHz.

High-Resolution Playback

The card supports common high-resolution PCM material without being restricted to basic 16-bit desktop audio.

High-Resolution Recording

Recording capability also extends to 24-bit / 192 kHz, according to StarTech's specifications.

Full-Duplex Operation

StarTech specifies full-duplex support, allowing simultaneous playback and recording when used with compatible software.

Sample rate and bit depth describe supported digital formats. They do not by themselves determine audible quality, noise performance or superiority over a good motherboard audio system.

Optical S/PDIF Input & Output

One of the PEXSOUND7CH's most useful differences from many inexpensive internal cards is that it provides both optical digital input and optical digital output.

Optical Input

Compatible digital audio sources can feed an optical S/PDIF signal into the PC through the card.

Optical Output

The PC can also send digital audio to compatible receivers, DACs, speaker systems and other S/PDIF equipment.

Optical S/PDIF has format and bandwidth limitations and should not be confused with HDMI's support for newer high-bandwidth multichannel formats.

C-Media CM8828

The PEXSOUND7CH is based on the C-Media CM8828 audio chipset. Its role is to provide the core PCIe audio functionality behind the card's multichannel, recording and digital I/O capabilities.

The PEXSOUND7CH should not be evaluated as though it were a premium DAC-centered enthusiast card. StarTech positions it more as a connectivity and PC audio expansion product.

ASIO & WASAPI Support

StarTech explicitly lists support for both ASIO and WASAPI.

ASIO

ASIO support can be useful with compatible audio applications that require an alternative to the standard Windows audio path.

WASAPI

WASAPI support provides another Windows audio interface for applications capable of using it.

ASIO support does not turn this card into a professional studio interface. Users needing balanced connections, dedicated microphone preamps or specialized production I/O should consider purpose-built recording hardware.

Inputs & Expansion

The PEXSOUND7CH offers considerably more than speaker outputs. Its collection of external and internal inputs is one of its strongest practical features.

Microphone Input

A stereo microphone input is provided for compatible analog sources.

Line Input

Stereo analog line input allows additional external audio sources to be connected to the PC.

Internal Audio

The card provides two internal CD/DVD-IN connections along with Intel HD front-panel audio support.

Low-Profile PC Support

StarTech supplies low-profile mounting hardware in addition to standard-profile installation hardware.

Standard Desktop PCs

The card can be installed in conventional desktop cases with a compatible PCIe expansion slot.

Small Form Factor PCs

Included low-profile brackets broaden installation options for compatible compact systems.

The PEXSOUND7CH uses the main sound card plus an additional header bracket to accommodate its full set of ports. Available expansion-slot space should therefore be checked before purchase.

Current Windows Compatibility

Current operating-system support is a major reason the PEXSOUND7CH qualifies for this Rockin Box Tech lineup.

Windows 11

StarTech's current product documentation explicitly lists Windows 11 compatibility.

Windows 10

Windows 10 is also included in StarTech's supported operating system list.

Windows 8

Windows 8 support means the card also meets the minimum operating-system generation established for this review category.

Official operating-system compatibility is stronger evidence than isolated reports that an older driver happens to function on a newer Windows release. Actual behavior can still vary with PC hardware, Windows updates and driver configuration.

92 dB SNR — An Important Difference

StarTech specifies approximately 92 dB A-weighted signal-to-noise ratio at the card's front output.

That is substantially lower on paper than the published figures of the premium Creative and ASUS cards already reviewed.

The PEXSOUND7CH is therefore better understood as a flexible connectivity upgrade than as an attempt to win a specification contest against premium internal audio hardware. Its value lies heavily in 7.1 analog output, optical input/output and broad PC connectivity.

What Owners Are Saying

Available exact-model owner feedback is mixed. Some users report that the card delivered the connectivity and sound quality they wanted, while other owners report driver, detection or stability problems.

Sound & Value

Positive owner reports commonly mention useful sound quality for the price and appreciation for the card's combination of analog and optical connections.

Optical I/O

Owners with older receivers, MiniDisc equipment and other S/PDIF hardware have specifically valued having both optical input and output available on an internal PCIe card.

Driver & Detection Complaints

Negative reports include Windows driver difficulties, intermittent hardware detection and systems that did not behave reliably after installation.

The available review samples are relatively small and sometimes old. Positive reports do not prove universal reliability, and individual negative experiences do not prove that every PEXSOUND7CH will have the same problem. These reports are useful consumer context rather than controlled technical testing.

Where the PEXSOUND7CH Makes Sense

7.1 Analog Speakers

A strong use case is a PC that needs direct connections to an existing multichannel analog speaker system.

Optical Audio Equipment

Having both optical input and output makes this card useful with digital equipment that needs two-way S/PDIF connectivity.

Media PCs

StarTech specifically identifies home-theater and media-center PCs as intended applications.

Small Form Factor PCs

Included low-profile hardware makes the card adaptable to compatible compact desktops.

Recording External Sources

Line, microphone and optical inputs provide more recording options than a basic playback-only sound card.

Current Windows PCs

Official Windows 11 compatibility makes it more relevant to present-day systems than many older PCIe sound cards.

Strengths & Limitations

Strengths

True internal PCI Express x1 sound card
Official Windows 11 compatibility listed
Windows 10 and Windows 8 support
Up to 7.1-channel analog output
Up to 24-bit / 192 kHz playback
Up to 24-bit / 192 kHz recording
Optical S/PDIF input
Optical S/PDIF output
Stereo microphone input
Stereo line input
ASIO support
WASAPI support
Intel HD front-panel audio support
Two internal CD/DVD audio inputs
Low-profile brackets included
Useful connectivity-focused alternative to Creative and ASUS

Limitations

Approximately 92 dB front-output SNR is modest by modern premium-card standards
No dedicated high-impedance headphone amplifier specification
No premium DAC positioning comparable with higher-end enthusiast cards
No external desktop control module
Requires an available PCIe slot
Full port configuration requires additional bracket space
Owner feedback includes driver and hardware-detection complaints
Exact-model consumer review samples are relatively small
Optical S/PDIF has bandwidth and format limitations
Modern motherboard audio may provide better measured analog performance

Works Best With

Analog Surround Systems

The 7.1 analog outputs are useful for retaining traditional multichannel PC speaker systems.

S/PDIF Equipment

Users who specifically need both optical input and output gain one of the PEXSOUND7CH's most distinctive features.

Modern Windows Desktops

StarTech's documented Windows 11 compatibility keeps this internal card relevant to current PC builds.

Rockin Box Tech Summary

The StarTech PEXSOUND7CH earns its place in this internal sound-card lineup for a different reason than the premium Creative or ASUS models.

This is primarily a connectivity-focused PCIe upgrade. It provides 7.1 analog audio, optical S/PDIF input and output, microphone and line inputs, front-panel support and 24-bit / 192 kHz playback and recording.

The approximately 92 dB published front-output SNR means it should not be presented as a direct analog-performance rival to premium cards carrying substantially higher published figures. Its strength is versatility rather than specification-sheet dominance.

The inclusion of both optical input and output is particularly useful for PCs connected to older receivers, digital recording equipment or other S/PDIF hardware. ASIO and WASAPI support further broaden its potential applications.

Owner feedback deserves attention. Some users report good sound, value and reliable operation, while others describe driver, detection or stability problems. The available samples are too small to turn either experience into a universal reliability conclusion.

The strongest reason it remains relevant today is compatibility. StarTech's current documentation explicitly lists Windows 11, Windows 10 and Windows 8. That gives the PEXSOUND7CH a cleaner modern-PC compatibility case than many older internal sound cards still circulating online.

For someone who specifically needs 7.1 analog output, optical input and output, or additional recording connections inside a current Windows desktop, the PEXSOUND7CH provides a practical feature combination that is increasingly uncommon.

Research Disclosure: Rockin Box Tech reviews are research-driven. Technical information is compiled from current manufacturer specifications, documentation, operating-system compatibility information and available consumer feedback. Rockin Box Tech does not represent that this product was physically tested unless explicitly stated. Manufacturer specifications are treated as technical claims, while owner reports are treated as anecdotal consumer experience rather than controlled testing. Driver behavior, Windows compatibility, pricing and product availability may change over time.

↑
