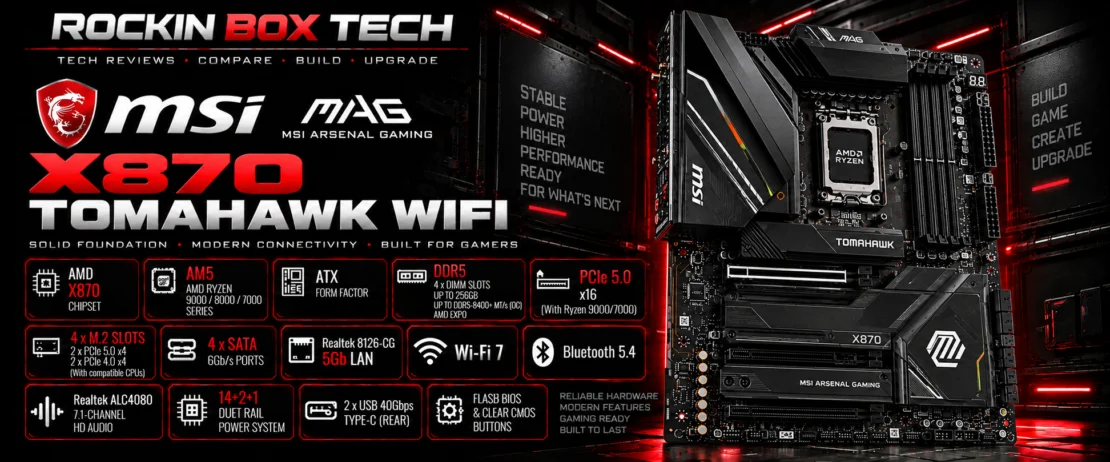

MSI MAG X870 TOMAHAWK WIFI
AMD X870 ATX motherboard for Ryzen 9000, 8000 and 7000 Series processors with DDR5, PCIe 5.0, dual Gen5 M.2 storage, Wi-Fi 7, 5Gb Ethernet and USB 40Gbps connectivity.
Quick Product Overview
The MSI MAG X870 TOMAHAWK WIFI is an ATX motherboard based on AMD's X870 chipset and AM5 socket. MSI lists support for AMD Ryzen 9000, 8000 and 7000 Series desktop processors.
Its hardware combines four DDR5 DIMM slots, PCIe 5.0 graphics, four M.2 positions, two PCIe 5.0 x4 M.2 connections, Wi-Fi 7, Realtek 5Gb Ethernet and rear USB 40Gbps Type-C connectivity.
The Tomahawk design focuses on a strong collection of performance, storage and networking features without requiring a flagship-tier motherboard.
Key Specifications
| Manufacturer | MSI |
|---|---|
| Model | MAG X870 TOMAHAWK WIFI |
| Chipset | AMD X870 |
| CPU Socket | AM5 |
| Processor Support | AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors |
| Form Factor | ATX — 304.8 × 243.84 mm |
| Memory | 4 × DDR5 UDIMM slots |
| Maximum Memory | Up to 256GB |
| Memory Speed | Up to DDR5-8400+ MT/s (OC), configuration dependent |
| Memory Profiles | AMD EXPO support |
| Primary Graphics Slot | PCIe 5.0 x16 with compatible Ryzen 9000 / 7000 processors |
| M.2 Storage | 4 × onboard M.2 slots |
| PCIe 5.0 M.2 | 2 × CPU-connected PCIe 5.0 x4 M.2 positions with compatible CPUs |
| SATA | 4 × SATA 6Gb/s ports |
| Wired Networking | Realtek 8126-CG 5Gb LAN |
| Wireless | Wi-Fi 7 |
| Bluetooth | Bluetooth 5.4 |
| Rear High-Speed USB | 2 × USB 40Gbps Type-C |
| Audio | Realtek ALC4080 7.1-channel USB high-performance audio |
| Power Design | 14+2+1 Duet Rail Power System with 80A Smart Power Stages |
| Firmware Controls | Flash BIOS and Clear CMOS rear buttons |
Performance & Use-Case Information
Gaming Systems
PCIe 5.0 graphics, DDR5 and high-speed NVMe storage provide the core platform features expected in a current high-performance AMD gaming PC.
Ryzen 9000 Builds
The X870 chipset and AM5 socket provide a current platform for compatible Ryzen 9000 Series desktop processors.
Fast NVMe Storage
Four M.2 positions include two CPU-connected slots capable of PCIe 5.0 x4 operation with compatible processors.
High-Speed Networking
Realtek 5Gb Ethernet provides substantially more wired bandwidth than traditional Gigabit networking when used with compatible equipment.
Wi-Fi 7
Integrated Wi-Fi 7 supports current-generation wireless networking, including 2.4GHz, 5GHz and 6GHz operation where supported.
USB4 Connectivity
Two rear USB 40Gbps Type-C ports provide high-bandwidth connectivity for compatible storage, displays and peripheral devices.
Power Delivery & Cooling
MSI specifies a 14+2+1 Duet Rail Power System using 80A Smart Power Stages, dual CPU power connectors and digital power control.
The board uses an extended PWM heatsink along with thermal pads and an 8-layer server-grade PCB containing 2oz thickened copper.
M.2 Shield Frozr heatsinks provide thermal coverage for high-speed NVMe storage, while dedicated CPU, pump and system fan connections support a range of air- and liquid-cooled builds.
Platform & Compatibility
AMD AM5
The motherboard uses AMD's AM5 socket and supports compatible Ryzen 9000, 8000 and 7000 Series desktop processors.
AMD X870
The X870 chipset provides the motherboard's current-generation storage, expansion and connectivity foundation.
DDR5 Only
Four UDIMM sockets support up to 256GB of DDR5 memory. DDR4 memory cannot be installed in an AM5 motherboard.
ATX Chassis
The 304.8 × 243.84 mm board requires a computer case supporting standard ATX motherboards.
Works Best With
AMD Ryzen AM5
Pair with a compatible Ryzen 9000, 8000 or 7000 Series desktop processor. CPU choice affects available PCIe and M.2 bandwidth.
AMD EXPO DDR5
A matched DDR5 memory kit with AMD EXPO support provides a straightforward route to configured memory overclocking on AM5.
High-Performance GPU
With compatible Ryzen 9000 and 7000 Series processors, the reinforced primary graphics slot supports PCIe 5.0 x16 operation.
Storage, Networking & Connectivity
4 M.2 Slots
Four onboard M.2 positions provide substantial capacity for NVMe solid-state storage.
Dual Gen5 M.2
M2_1 and M2_2 can support PCIe 5.0 x4 operation with compatible Ryzen 9000 and 7000 Series processors.
4 SATA Ports
Four SATA 6Gb/s connections retain support for conventional SATA SSDs and mechanical hard drives.
5Gb Ethernet
The Realtek 8126-CG controller provides onboard 5Gb wired networking for compatible high-speed networks.
Wi-Fi 7
Integrated Wi-Fi 7 supports modern wireless networking and includes Bluetooth connectivity.
USB 40Gbps
Two rear Type-C connections provide USB 40Gbps capability for compatible high-bandwidth peripherals.
What Published Technical Information Shows
Strong AM5 Platform
X870, AM5 and support for several Ryzen generations provide a broad foundation for current AMD desktop systems.
Substantial Power Hardware
The documented 14+2+1 power system, 80A stages and extended VRM cooling are designed around performance-oriented processors.
Extensive Storage
Four M.2 positions and four SATA connections provide flexibility for systems combining current NVMe drives with conventional storage.
Two Gen5 M.2 Positions
With compatible CPUs, two M.2 slots can operate using PCIe 5.0 x4, providing considerable high-speed storage capability.
Fast Networking
The combination of 5Gb Ethernet and Wi-Fi 7 provides both high-speed wired and current-generation wireless networking.
DIY Features
MSI includes EZ PCIe Release, tool-less M.2 hardware, Flash BIOS and Clear CMOS features intended to simplify building and troubleshooting.
Where Research Agrees & Differs
Documented Hardware
MSI's specifications establish the board's AM5/X870 platform, four-DIMM DDR5 configuration, four M.2 positions, dual Gen5 M.2 capability, 5Gb Ethernet, Wi-Fi 7 and USB 40Gbps connectivity.
CPU Choice Matters
PCIe graphics width, Gen5 storage support and some lane allocations change according to the installed Ryzen processor family. Memory overclocking results are also configuration dependent.
Strengths & Limitations
Strengths
- AMD X870 / AM5 platform
- Ryzen 9000 / 8000 / 7000 support
- Up to 256GB DDR5
- AMD EXPO support
- PCIe 5.0 x16 graphics with compatible CPUs
- Four onboard M.2 positions
- Two PCIe 5.0 x4 M.2 positions with compatible CPUs
- Realtek 5Gb Ethernet
- Wi-Fi 7 and Bluetooth 5.4
- Two rear USB 40Gbps Type-C ports
- ALC4080 audio
- Flash BIOS and Clear CMOS buttons
Limitations
- DDR4 memory cannot be reused
- PCIe capabilities vary by Ryzen processor family
- M2_2 shares bandwidth with USB 40Gbps connectivity
- Some expansion and storage resources share chipset lanes
- Maximum DDR5 speed depends on CPU and DIMM configuration
- Full 5Gb LAN benefit requires compatible network hardware
Upgrade Considerations
Moving to AM5
Builders moving from an older AM4 system require an AM5 processor and DDR5 memory. CPU cooler mounting compatibility should also be verified before reuse.
CPU Selection
Ryzen 9000, 8000 and 7000 Series processors do not expose identical PCIe configurations, making CPU choice important when planning graphics and Gen5 storage.
Storage Planning
Builders using both Gen5 M.2 positions and USB 40Gbps devices should review MSI's lane-sharing documentation before finalizing the system.
Alternatives to Consider
ASUS ROG STRIX X870E-E GAMING WIFI
A higher-tier AM5 alternative with the X870E chipset and a more extensive enthusiast-oriented feature set.
Gigabyte B850 AORUS ELITE WIFI7 ICE
A B850-based AM5 alternative for builders who do not require the complete X870 feature package.
MSI MPG X870E CARBON WIFI
A higher-tier MSI AM5 option emphasizing additional enthusiast features and premium connectivity.
Who Is It Best For?
Ryzen Gaming PCs
Performance-focused AM5 gaming systems using DDR5, discrete graphics and high-speed NVMe storage.
Storage-Heavy Builds
Systems that can make use of four M.2 positions and multiple high-bandwidth NVMe drives.
Fast Networked PCs
Builders who can benefit from onboard 5Gb Ethernet, Wi-Fi 7 and USB 40Gbps connectivity.
Rockin Box Tech Research Summary
The MSI MAG X870 TOMAHAWK WIFI combines AMD's X870 / AM5 platform with a strong collection of storage, networking and expansion features.
Its documented hardware includes four DDR5 slots, four M.2 positions, two Gen5 M.2 connections, PCIe 5.0 graphics support, Realtek 5Gb Ethernet, Wi-Fi 7 and dual rear USB 40Gbps Type-C.
The 14+2+1 80A power design, extended cooling hardware and builder-oriented MSI features make it suitable for performance-focused Ryzen systems without requiring a flagship motherboard.
The most important configuration consideration is lane sharing. Processor choice changes available PCIe resources, while the second Gen5 M.2 position shares bandwidth with the rear USB 40Gbps ports. Those details should be checked before purchasing the final storage and expansion hardware.
