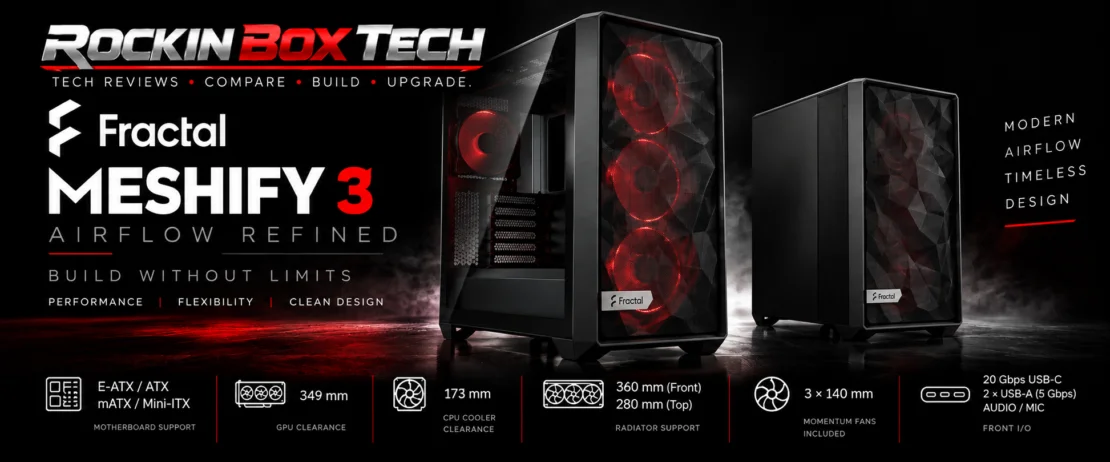

Fractal Design Meshify 3 Ambience Pro RGB
A research-driven look at Fractal Design's airflow-focused ATX chassis, combining a mesh front, three 140 mm Momentum fans, modern connectivity and extensive component compatibility.
Quick Product Overview
Airflow-Oriented Design
The rockface-inspired mesh front provides a large ventilated intake, while an internal air guide directs incoming air toward the graphics card area.
Three 140 mm Fans Included
This Ambience Pro RGB configuration includes three front-mounted Momentum 14 fans using LCP blades and fluid-dynamic bearings.
Ambience Pro Equipment
The Ambience Pro RGB version adds integrated ambient lighting and Fractal's Adjust Pro Hub for fan and lighting configuration.
Key Specifications
| Exact Model Reviewed | Meshify 3 Ambience Pro RGB Black TG Light Tint |
|---|---|
| SKU | FD-C-MES3A-03 |
| Dimensions | 433 × 229 × 507 mm |
| Net Weight | 9.1 kg |
| Motherboards | E-ATX up to 277 mm, ATX, Micro-ATX and Mini-ITX |
| GPU Clearance | Up to 349 mm long and 176 mm wide |
| CPU Cooler Clearance | Up to 173 mm |
| PSU Support | ATX, up to 180 mm length |
| Expansion Slots | 7 |
| Included Fans | 3 × Momentum 14 front fans |
| Front Fan Support | 3 × 120/140 mm |
| Top Fan Support | 2 × 120/140 mm |
| Rear Fan Support | 1 × 120 mm |
| Front Radiator | 120 / 240 / 280 / 360 mm |
| Top Radiator | 120 / 140 / 240 / 280 mm |
| Rear Radiator | 120 mm |
| Drive Support | 2 dedicated 2.5-inch mounts plus 4 combined 3.5/2.5-inch mounts |
| Cable Routing Space | 34.5 mm |
| Side Panels | Tempered glass left / steel right |
| Front I/O | 1 × USB-C 20 Gbps, 2 × USB-A 5 Gbps, audio/microphone combo jack, power button |
| Warranty | 2 years |
Airflow & Cooling Information
Front Intake
The open mesh front and three included 140 mm intake fans provide the foundation for the case's cooling layout.
GPU Air Guide
Fractal incorporates an air guide above the PSU area to direct a portion of front intake airflow toward the graphics card.
Radiator Options
Builders can install up to a 360 mm front radiator or a 280 mm top radiator, plus a 120 mm rear radiator.
Case Design & Build Features
Tool-Less Access
The side panels, front panel, top panel, bottom filter and PSU bracket are designed for tool-less access. The removable top radiator bracket can also simplify cooling installation.
Cable Management
Fractal provides 34.5 mm of routing space along with cable grommets, hook-and-loop straps, cable clips and a cable cover to help organize wiring behind the motherboard tray.
Platform & Compatibility
Meshify 3 accommodates mainstream ATX builds as well as Micro-ATX, Mini-ITX and E-ATX motherboards up to 277 mm wide. The 349 mm graphics-card clearance accommodates many modern GPUs, while the 173 mm CPU-cooler clearance supports a broad selection of tower air coolers.
Builders planning a large front-mounted radiator should pay particular attention to GPU length. Fractal states that the radiator thickness must be subtracted from the case's 349 mm maximum GPU length.
Works Best With
Air-Cooled Gaming Builds
The mesh intake, included 140 mm fans and 173 mm CPU-cooler clearance make the chassis well suited to conventional high-airflow builds.
AIO Liquid Cooling
Support for a 360 mm front or 280 mm top radiator provides useful flexibility for mainstream AIO configurations.
Modern Performance GPUs
Up to 349 mm of GPU length and 176 mm of width provide substantial room, provided front-radiator thickness is considered.
Storage, I/O & Everyday Practicality
Drive Capacity
Two dedicated 2.5-inch mounts and four combined 3.5/2.5-inch mounting positions provide considerably more storage flexibility than many minimalist gaming enclosures.
Modern Front I/O
The 20 Gbps USB-C connection is accompanied by two 5 Gbps USB-A ports and a combined headset jack.
Dust Management
A removable PSU dust filter is included. The highly ventilated front design prioritizes unrestricted intake airflow.
What Published Technical Information Shows
Independent GamersNexus testing found the Meshify 3 to be a strong thermal performer and found that the internal front air guide produced a measurable improvement in GPU cooling. Its testing also highlighted Fractal's cable aligner system as a useful build feature.
The design therefore is not relying solely on the visual appearance of a mesh front panel. Published testing provides evidence that some of the case's airflow engineering has a measurable effect under controlled test conditions.
Owner Satisfaction & What Builders Are Saying
Recurring Positive Feedback
- Owners frequently appreciate the distinctive Meshify styling.
- Airflow and cooling capability receive positive attention.
- The internal air guide is viewed positively by builders focused on GPU airflow.
- Cable-routing features and the clean finished interior are commonly appreciated.
- The included 140 mm fans reduce the amount of cooling hardware needed to begin a build.
Concerns Worth Knowing
- Some owners prefer the heavier construction and panel mechanisms of earlier Meshify generations.
- There are owner reports criticizing certain panel-fit and perceived build-quality details.
- Early review samples had excessively tight PCIe-slot tolerances; Fractal delayed launch and reworked affected inventory.
- The standard-size Meshify 3 has less radiator and GPU space than the much larger Meshify 3 XL.
Where Research Agrees & Differs
Manufacturer documentation and independent testing broadly agree that airflow is one of the Meshify 3's central strengths. The included Momentum fans, ventilated front and GPU-directed air guide form a coherent cooling design rather than a collection of cosmetic features.
The more mixed discussion concerns construction and value. Some builders appreciate the streamlined panels and tool-less access, while others coming from older Fractal cases have expressed disappointment with aspects of the newer panel design and perceived material feel. These differences make owner expectations important: someone prioritizing airflow and modern styling may evaluate the case differently from someone prioritizing the heavier feel and mechanical design of an older enclosure.
Strengths & Limitations
Strengths
- Strong airflow-focused layout
- Three 140 mm Momentum fans included
- Useful GPU-directed internal air guide
- 360 mm front radiator support
- 20 Gbps front USB-C
- Good cable-routing equipment
- Broad motherboard compatibility
- Ambience Pro lighting and Adjust Pro Hub
Limitations
- 280 mm maximum top radiator size
- Front radiator installation reduces GPU clearance
- 180 mm maximum PSU length requires planning with larger units
- Only a PSU-specific removable dust filter is listed
- Some owner feedback questions panel feel and construction details
- Builders needing extreme radiator capacity may be better served by the Meshify 3 XL or another larger chassis
Upgrade & Build Considerations
The most important planning decision is the relationship between graphics card length and front-mounted liquid cooling. A thick 360 mm radiator can materially reduce the available 349 mm GPU space.
Builders using very large power supplies should also confirm the 180 mm PSU limit before purchase. For systems requiring several large radiators, exceptionally long graphics cards or extensive custom-loop hardware, the larger Meshify 3 XL provides substantially greater expansion room.
Alternatives to Consider
Fractal Meshify 3 XL
Worth considering when the build requires significantly more GPU room, larger top radiators or multi-radiator custom-loop capability.
Lian Li LANCOOL 207
A useful alternative for builders placing strong emphasis on performance-oriented airflow and value.
HAVN BF 360
An alternative for builders interested in a different approach to airflow engineering, internal layout and cable management.
Who Is It Best For?
The Meshify 3 Ambience Pro RGB is best suited to builders who want an airflow-oriented ATX case with modern styling, included premium-size fans, contemporary front connectivity and enough cooling flexibility for either a large air cooler or mainstream AIO liquid cooling.
It is less suited to builds centered on extremely large custom loops, oversized power supplies or configurations requiring the maximum possible internal expansion space.
Rockin Box Tech Research Summary
The Fractal Design Meshify 3 Ambience Pro RGB combines a proven airflow-oriented concept with several meaningful engineering updates. Its three included 140 mm Momentum fans, GPU-directed air guide, substantial component clearances and 20 Gbps USB-C make it a capable foundation for a modern performance PC.
Independent testing supports the case's cooling credentials, while owner discussion is somewhat more divided on panel design and perceived build quality compared with earlier Meshify generations. The history of the pre-launch PCIe-slot fitment correction is also worth knowing, even though Fractal delayed the launch to rework affected inventory.
Overall, the research shows a case with particularly strong cooling fundamentals and useful modern features, but builders should still compare its physical clearances, construction approach and radiator limits against their specific hardware before choosing it.
Research Sources
Primary specifications: Fractal Design official Meshify 3 product documentation, product sheet and technical support documentation.
Independent technical research: GamersNexus Meshify 3 case testing and thermal/noise analysis.
Owner/community research: Published Meshify 3 owner discussions were reviewed for recurring satisfaction points, complaints and build-experience observations. Community comments are treated as qualitative feedback rather than controlled technical evidence.
Research Disclosure
Each review is research-driven and based on manufacturer specifications, technical documentation and reputable published sources.
Products are not necessarily physically tested by Rockin Box Tech.
Cooling performance, temperatures, acoustics and overall build experience can vary according to installed components, fan quantity and placement, radiator configuration, graphics-card size and orientation, CPU cooler, power supply, cable routing, room temperature, dust accumulation and operating conditions.
Owner and community feedback represents individual user experiences and should not be interpreted as controlled laboratory testing.
Product specifications, revisions, accessories, pricing and availability may change after this review is published.
