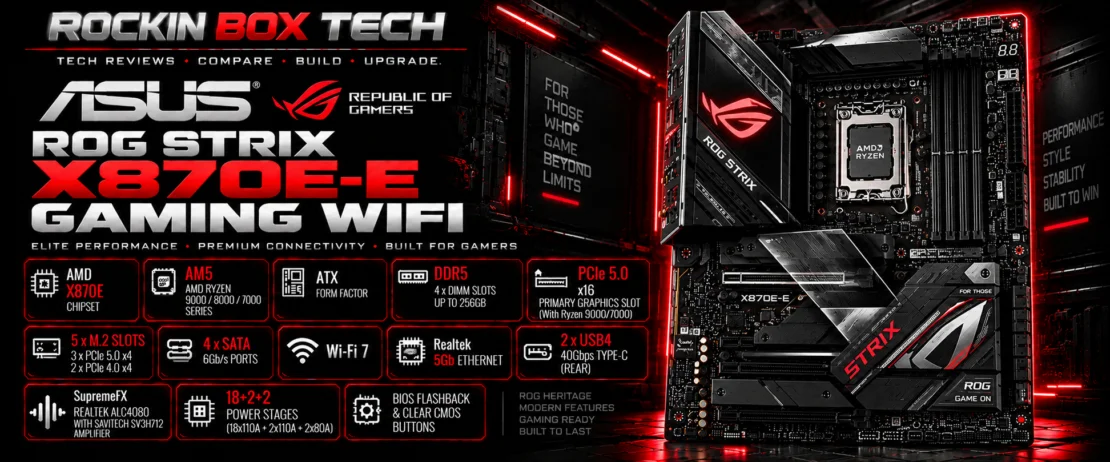

ASUS ROG STRIX X870E-E GAMING WIFI
Premium AMD X870E ATX motherboard for Ryzen 9000, 8000 and 7000 Series processors with DDR5, PCIe 5.0, three Gen5 M.2 slots, Wi-Fi 7, 5Gb Ethernet and dual USB4 connectivity.
Quick Product Overview
The ASUS ROG STRIX X870E-E GAMING WIFI is a performance-oriented ATX motherboard built around AMD's X870E chipset and AM5 socket. ASUS lists support for AMD Ryzen 9000, 8000 and 7000 Series desktop processors.
Its feature set includes four DDR5 DIMM slots, a PCIe 5.0 x16 graphics slot with compatible processors, five onboard M.2 positions, three PCIe 5.0 x4 M.2 slots, Wi-Fi 7, Realtek 5Gb Ethernet and dual rear USB4 Type-C connections.
The board also combines a substantial 18+2+2 power solution with ROG SupremeFX audio and ASUS's current collection of Q-Design installation and troubleshooting features.
Key Specifications
| Manufacturer | ASUS |
|---|---|
| Model | ROG STRIX X870E-E GAMING WIFI |
| Chipset | AMD X870E |
| CPU Socket | AM5 |
| Processor Support | AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors |
| Form Factor | ATX |
| Memory | 4 × DDR5 DIMM slots, dual channel |
| Maximum Memory | Up to 256GB |
| Memory Speed | Up to DDR5-8400+ MT/s (OC), configuration dependent |
| Memory Features | AMD EXPO, ASUS AEMP and NitroPath DRAM technology |
| Primary Graphics Slot | 1 × PCIe 5.0 x16 with compatible Ryzen 9000 / 7000 processors |
| Additional Expansion | 1 × chipset-connected PCIe 4.0 x16 physical slot operating up to x4 |
| M.2 Storage | 5 × onboard M.2 slots |
| PCIe 5.0 M.2 | 3 × PCIe 5.0 x4 M.2 positions with compatible processors |
| PCIe 4.0 M.2 | 2 × PCIe 4.0 x4 M.2 positions |
| SATA | 4 × SATA 6Gb/s ports |
| Wired Networking | Realtek 5Gb Ethernet with ASUS LANGuard |
| Wireless | 2×2 Wi-Fi 7 |
| Bluetooth | Bluetooth 5.4 |
| USB4 | 2 × rear USB4 Type-C ports, up to 40Gbps each |
| Additional Rear USB-C | USB 20Gbps Type-C with up to 30W PD fast charging |
| Audio | ROG SupremeFX Realtek ALC4080 with Savitech SV3H712 amplifier |
| Power Solution | 18+2+2 power stages — 18×110A + 2×110A + 2×80A |
| Firmware Controls | BIOS FlashBack and Clear CMOS rear buttons |
Performance & Use-Case Information
Performance Gaming
PCIe 5.0 graphics, DDR5 and extensive high-speed NVMe storage make the board well equipped for current performance-focused Ryzen gaming systems.
Ryzen 9000 Platform
The X870E chipset and AM5 socket provide a current enthusiast platform for compatible Ryzen 9000 Series desktop processors.
Gen5 NVMe Storage
Three onboard M.2 positions support PCIe 5.0 x4 operation with compatible processors, while two additional slots provide PCIe 4.0 x4 storage.
High-Speed Networking
Realtek 5Gb Ethernet provides significantly more wired bandwidth than traditional Gigabit Ethernet when paired with compatible network equipment.
Wi-Fi 7
Integrated 2×2 Wi-Fi 7 supports modern 2.4GHz, 5GHz and 6GHz wireless networking where supported by the operating system and local regulations.
USB4
Dual rear USB4 Type-C connections provide up to 40Gbps of bidirectional bandwidth for compatible storage, displays and other high-speed peripherals.
Power Delivery & Cooling
ASUS equips the X870E-E with an 18+2+2 power-stage solution. ASUS specifies 18 CPU stages rated for up to 110A each, two additional 110A stages and two 80A stages.
Dual ProCool II CPU power connectors and large VRM heatsinks support the processor power-delivery hardware. ASUS also provides extensive M.2 thermal coverage, including its M.2 Combo-Sink and individual M.2 heatsinks.
Cooling connections include dedicated CPU fan, CPU optional fan and AIO pump headers plus five four-pin chassis fan headers.
Platform & Compatibility
AMD AM5
The board uses AMD's AM5 socket and supports compatible Ryzen 9000, 8000 and 7000 Series desktop processors.
AMD X870E
The X870E chipset positions the board within AMD's premium AM5 platform with extensive PCIe 5.0 and high-speed connectivity.
DDR5 Only
Four DIMM sockets support up to 256GB of DDR5 memory. DDR4 modules cannot be installed in this motherboard.
ATX Chassis
The motherboard uses the standard ATX form factor and requires a computer case with ATX motherboard support.
Works Best With
AMD Ryzen AM5
A compatible Ryzen 9000, 8000 or 7000 Series processor is required. Ryzen 9000 and 7000 processors provide the fullest PCIe 5.0 configuration.
AMD EXPO DDR5
A matched DDR5 kit with AMD EXPO support is the most straightforward choice for configured memory overclocking on a performance AM5 build.
High-Performance GPU
The reinforced primary SafeSlot provides PCIe 5.0 x16 operation with compatible Ryzen 9000 and 7000 Series processors.
Storage, Networking & Connectivity
5 M.2 Slots
Five onboard M.2 positions provide extensive capacity for NVMe solid-state storage.
3 Gen5 M.2 Slots
Three M.2 positions can provide PCIe 5.0 x4 storage bandwidth with compatible Ryzen processors.
4 SATA Ports
Four SATA 6Gb/s connections retain support for SATA SSDs, hard drives and other compatible SATA devices.
5Gb Ethernet
The onboard Realtek controller provides 5Gb wired networking with ASUS LANGuard.
Wi-Fi 7
Integrated 2×2 Wi-Fi 7 provides current-generation wireless connectivity across supported frequency bands.
Dual USB4
Two rear USB4 Type-C ports provide up to 40Gbps bandwidth and support compatible display output.
Audio & Builder Features
SupremeFX ALC4080
ROG SupremeFX uses the Realtek ALC4080 codec with support for high-resolution audio playback and recording.
Savitech Amplifier
A Savitech SV3H712 amplifier complements the onboard SupremeFX audio hardware.
BIOS FlashBack
A rear BIOS FlashBack button provides a dedicated method for firmware updating and recovery.
Clear CMOS
The rear Clear CMOS control provides convenient firmware-setting recovery during tuning or troubleshooting.
M.2 Q-Design
ASUS provides M.2 Q-Latch, Q-Release and Q-Slide features intended to simplify NVMe drive installation and removal.
PCIe Q-Release
ASUS's PCIe release system is designed to simplify removal of large graphics cards from the reinforced primary expansion slot.
What Published Technical Information Shows
Premium AM5 Platform
X870E, PCIe 5.0 and extensive high-speed connectivity position the board within ASUS's performance-oriented AM5 lineup.
Substantial Power Hardware
The documented 18+2+2 power-stage design and large VRM heatsinks provide a substantial electrical and thermal platform for compatible Ryzen processors.
Extensive NVMe Capacity
Five M.2 positions provide considerably more onboard NVMe expansion than many mainstream motherboard configurations.
Three Gen5 M.2 Positions
Three PCIe 5.0 x4-capable M.2 positions provide substantial high-bandwidth storage capability with compatible CPUs.
Modern Networking
Realtek 5Gb Ethernet and Wi-Fi 7 provide both high-speed wired and current-generation wireless connectivity.
High-Speed External I/O
Dual USB4 plus additional USB 20Gbps and USB 10Gbps connectivity provide extensive support for high-bandwidth external devices.
Where Research Agrees & Differs
Documented Hardware
ASUS documentation establishes the board's X870E/AM5 platform, five-M.2 configuration, three Gen5 M.2 positions, Wi-Fi 7, 5Gb Ethernet, dual USB4 and 18+2+2 power solution.
Results Depend on Configuration
Memory speed, PCIe resources, storage behavior, temperatures and processor performance vary according to CPU, DIMMs, firmware, cooling and installed expansion hardware.
Strengths & Limitations
Strengths
- AMD X870E / AM5 platform
- Ryzen 9000 / 8000 / 7000 support
- Up to 256GB DDR5
- PCIe 5.0 x16 graphics with compatible CPUs
- Five onboard M.2 positions
- Three PCIe 5.0 x4 M.2 positions
- Realtek 5Gb Ethernet
- 2×2 Wi-Fi 7
- Dual rear USB4 40Gbps Type-C
- SupremeFX ALC4080 / Savitech audio
- 18+2+2 power-stage design
- BIOS FlashBack and Clear CMOS
Limitations
- DDR4 memory cannot be reused
- PCIe capabilities vary by processor family
- High-speed expansion can involve lane sharing
- Maximum DDR5 speeds are configuration dependent
- Full Wi-Fi 7 functionality depends on OS and network support
- 5Gb Ethernet requires compatible network hardware for full speed
- Premium feature set may exceed the needs of simpler systems
Upgrade Considerations
Moving from AM4
An AM4 upgrade requires an AM5 processor and DDR5 memory. Cooler mounting compatibility should also be confirmed before attempting to reuse an existing CPU cooler.
CPU Selection
Ryzen 9000, 8000 and 7000 Series processors do not provide identical PCIe configurations, so processor selection affects the board's available expansion resources.
Expansion Planning
Systems using several Gen5 NVMe drives plus a high-performance GPU should be planned around ASUS's published PCIe lane-sharing and bifurcation information.
Alternatives to Consider
MSI MAG X870 TOMAHAWK WIFI
An X870 alternative offering AM5, Gen5 storage, Wi-Fi 7, 5Gb networking and USB 40Gbps connectivity with a different feature mix.
MSI MPG X870E CARBON WIFI
A premium X870E alternative emphasizing enthusiast connectivity, storage and performance features.
ASRock X870E Taichi
Another enthusiast-oriented X870E platform for builders comparing premium AM5 motherboard feature sets.
Who Is It Best For?
High-End Ryzen Gaming
Performance-focused Ryzen systems using discrete graphics, DDR5 memory and high-speed NVMe storage.
Storage-Heavy Systems
Builders who can make practical use of five onboard M.2 positions, including multiple PCIe 5.0 NVMe drives.
Premium Connectivity Builds
Systems that can benefit from 5Gb Ethernet, Wi-Fi 7, dual USB4 and the board's extensive high-speed USB connectivity.
Rockin Box Tech Research Summary
The ASUS ROG STRIX X870E-E GAMING WIFI combines AMD's premium X870E / AM5 platform with extensive storage, expansion and connectivity hardware.
Its documented specifications include four DDR5 DIMM slots, PCIe 5.0 graphics, five M.2 positions, three Gen5 M.2 connections, Wi-Fi 7, Realtek 5Gb Ethernet and dual USB4 40Gbps Type-C.
The board also provides a substantial 18+2+2 power-stage solution, extensive VRM and M.2 cooling, SupremeFX audio and ASUS Q-Design builder features.
Processor selection remains important because PCIe graphics and storage configurations differ across Ryzen 9000, 8000 and 7000 Series processors. Builders planning several Gen5 devices should verify ASUS's current lane-sharing documentation for their exact configuration.
