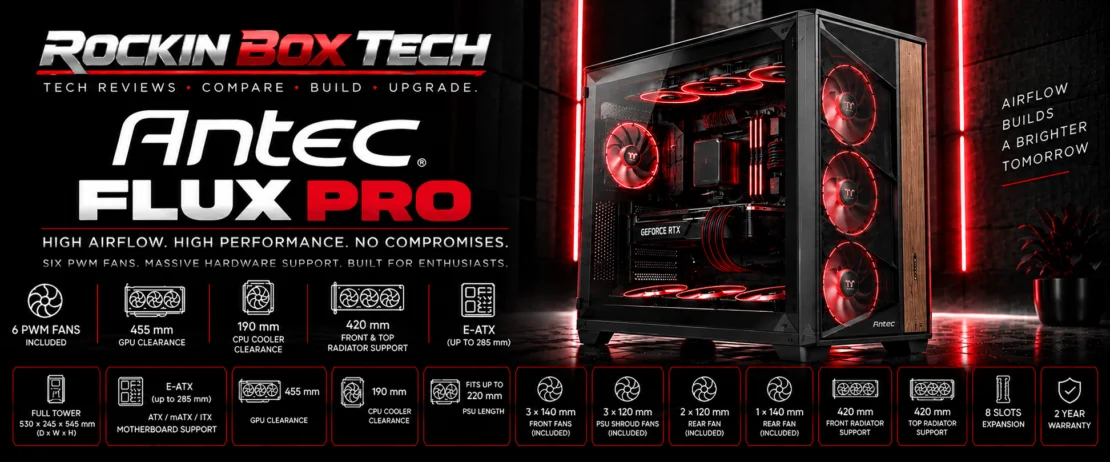

Antec FLUX Pro
A research-driven look at Antec's airflow-focused full tower, combining six factory PWM fans, extensive GPU cooling, 420 mm radiator support, large-component compatibility and an unusually flexible PSU and storage layout.
Quick Product Overview
Airflow First
The FLUX Pro is designed around strong front-to-back airflow with additional intake directed toward the graphics card from the PSU shroud.
Six Factory Fans
Unlike cases that require a separate cooling investment, the standard FLUX Pro arrives with three 140 mm front intake fans, two 120 mm reverse fans on the PSU shroud and one 140 mm rear fan.
Large Hardware Support
A 455 mm GPU limit, 190 mm CPU-cooler clearance and E-ATX support give builders room for substantial enthusiast hardware.
Key Specifications
| Product | Antec FLUX Pro |
|---|---|
| Case Type | Full Tower |
| Dimensions | 530 × 245 × 545 mm (D × W × H) |
| Net Weight | 13.60 kg |
| Materials | Steel, plastic, glass and wood |
| Side Panel | 4 mm tempered glass |
| Motherboards | E-ATX up to 285 mm wide, ATX, Micro-ATX, Mini-ITX |
| Maximum GPU Length | 455 mm |
| Maximum CPU Cooler Height | 190 mm |
| Expansion Slots | 8 |
| Included Fans | 6 PWM fans |
| Front I/O | 2 × USB 3.0 Type-A, 1 × USB-C 10 Gbps, Headphone/Mic Combo |
| Warranty | 2 years |
Factory Cooling
| Front | 3 × 140 mm Tranquil PWM fans included |
|---|---|
| PSU Shroud | 2 × 120 mm P12R PWM reverse fans included |
| Rear | 1 × 140 mm Tranquil PWM fan included |
| Total | 6 factory-installed PWM fans |
Fan Support
| Front | 3 × 120 mm or 3 × 140 mm |
|---|---|
| Top | 3 × 120 mm or 3 × 140 mm |
| PSU Shroud | 3 × 120 mm |
| Bottom | 2 × 120 mm or 2 × 140 mm |
| Rear | 1 × 120 mm or 1 × 140 mm |
Liquid Cooling Support
| Front Radiator | 120 / 140 / 240 / 280 / 360 / 420 mm |
|---|---|
| Top Radiator | 120 / 140 / 240 / 280 / 360 / 420 mm |
| PSU Shroud | 120 / 240 / 360 mm |
| Bottom | 120 / 240 mm |
| Rear | 120 / 140 mm |
The combination of front and top 420 mm radiator support gives the FLUX Pro enough cooling flexibility for large AIO systems and ambitious custom liquid-cooling configurations.
Airflow Architecture
Front Intake
Three included 140 mm PWM fans establish a large-volume front intake path aimed directly through the primary component chamber.
GPU-Focused Intake
Two reverse-blade 120 mm fans on the PSU shroud feed additional air toward the graphics card rather than relying exclusively on front intake.
Rear Exhaust
The included 140 mm rear PWM fan helps complete the front-to-back airflow path through the CPU and motherboard area.
Independent Thermal Testing
GamersNexus found the original FLUX Pro to be one of the strongest thermal performers tested under its updated case-testing methodology. With the factory fans noise-normalized to 27 dBA, its CPU averaged 41°C above ambient across all cores and 45°C above ambient on the P-cores in the review's full-system workload.
GPU performance was also strong. At full fan speed, the baseline configuration averaged 38°C above ambient on the GPU core, with a 50°C hotspot and 43°C memory-junction result.
At the same 27 dBA noise-normalized target, GamersNexus measured the GPU at 41°C above ambient, with a 53°C hotspot and 47°C memory result. The testing showed that the PSU-shroud intake fans provide a real thermal benefit rather than simply increasing the advertised fan count.
GPU Cooling
Graphics-card cooling is a major strength of the design. Instead of depending only on air traveling from the front of a large tower, Antec places two reverse 120 mm fans directly on the PSU shroud to feed air upward toward the GPU.
GamersNexus' standardized-fan testing provides useful evidence that these fans matter. When the stock shroud fans were removed as part of its standardized three-fan configuration, average GPU temperature increased compared with the stock configuration.
Hardware Compatibility
455 mm GPU Clearance
The large internal chamber accommodates graphics cards up to 455 mm, providing extensive room for oversized current-generation GPUs.
190 mm Air Cooling
CPU coolers up to 190 mm tall are supported, giving air-cooling builders room for very large tower coolers.
E-ATX Support
The chassis accepts E-ATX motherboards up to 285 mm wide as well as ATX, Micro-ATX and Mini-ITX.
PSU Flexibility & iShift
Antec's PSU layout can be configured in different ways to help with cable routing. With the HDD hardware installed, PSU clearance varies according to configuration, while removing the HDD cage opens considerably more room.
GamersNexus tested Antec's rotated iShift PSU arrangement and found little meaningful thermal change with its test hardware. Its practical advantage is therefore better understood as cable-management flexibility rather than a guaranteed cooling improvement.
Storage Support
| 3.5-inch / 2.5-inch Combination Positions | 4 / 4 |
|---|---|
| Additional 2.5-inch Positions | 2 |
| Drive Cage | Modular |
Compared with many modern airflow cases that have reduced mechanical-drive support, the FLUX Pro retains substantial storage flexibility for systems that need multiple SATA SSDs or hard drives.
Works Best With
High-Heat GPUs
Large GPU clearance and two factory shroud-intake fans make the FLUX Pro particularly well suited to powerful graphics cards.
420 mm Liquid Cooling
Front and top 420 mm radiator compatibility provides room for large AIO coolers and substantial custom-loop hardware.
Large Air Coolers
The 190 mm CPU-cooler limit gives builders unusually generous room for large dual-tower air-cooling solutions.
Build Experience
The FLUX Pro combines its large internal volume with tool-free panel access, a modular hard-drive cage, cable ties and reusable Velcro straps. Its full-tower dimensions also reduce some of the clearance pressure encountered in compact performance cases.
The trade-off is physical size. At 530 × 245 × 545 mm and 13.6 kg before components are installed, this is a substantial chassis that needs appropriate desk or floor space.
Owner Satisfaction & What Builders Are Saying
Recurring Positive Feedback
- Owners frequently praise the strong airflow and cooling potential.
- The six included PWM fans reduce the need for an immediate fan purchase.
- Large clearances make high-end components comparatively easy to install.
- Builders report a straightforward installation experience despite the extensive hardware support.
- Cable-management space is generally viewed positively.
- The wood front accent gives the case a less industrial appearance than many performance towers.
- Independent testing strongly supports the case's reputation for thermal performance.
Recurring Concerns
- The case is large and heavy once fully assembled.
- Some owners have reported isolated quality-control issues involving cosmetic finish or the temperature display.
- PSU fit and orientation require attention when using unusually long power supplies and drive cages together.
- The fan hub has fewer available connections than might be expected for a chassis supplied with six fans.
- Builders who do not need extensive cooling or storage capacity may find the full-tower footprint excessive.
Where Research Agrees & Differs
The strongest agreement between professional testing and owner feedback concerns airflow. The FLUX Pro's cooling reputation is supported by controlled thermal measurements, particularly its CPU performance and the effectiveness of the GPU-directed shroud fans.
The case's iShift PSU arrangement deserves more qualification. Although it may improve routing in certain builds, GamersNexus found essentially no meaningful thermal improvement from rotating the PSU with its test configuration. It should therefore be considered primarily a build-management feature rather than a cooling feature.
Owner quality-control complaints also need context. Individual reports of display or cosmetic problems exist, but they should not be treated as evidence that every FLUX Pro has those issues.
Strengths & Limitations
Strengths
- Six PWM fans included
- Excellent measured thermal performance
- Dedicated GPU-directed shroud airflow
- 455 mm GPU clearance
- 190 mm CPU-cooler clearance
- 420 mm front radiator support
- 420 mm top radiator support
- E-ATX motherboard compatibility up to 285 mm
- Substantial SATA drive support
- Modular hard-drive cage
- Flexible PSU arrangement
- USB-C 10 Gbps front connectivity
- Full-size bottom dust filter
- Tempered glass and wood-accented construction
Limitations
- Large full-tower footprint
- 13.6 kg before components
- PSU clearance changes with drive configuration
- Eight horizontal expansion slots but vertical GPU mounting requires additional hardware
- Fan-hub connectivity deserves attention when planning additional fans
- Some isolated owner reports of cosmetic or display quality-control issues
- May provide more case than a mainstream system requires
Upgrade & Build Considerations
The FLUX Pro provides considerable headroom for future hardware. A 455 mm GPU limit leaves room for exceptionally long graphics cards, while 190 mm CPU-cooler clearance allows builders to retain air cooling even with very large tower designs.
Liquid-cooling expansion is similarly strong. Both front and top locations accept radiators through 420 mm, and additional radiator positions exist on the PSU shroud, bottom and rear.
Storage flexibility also makes the FLUX Pro suitable for systems that may expand beyond NVMe storage. The modular drive system can support several 3.5-inch and 2.5-inch devices while allowing unused hardware to be removed when additional PSU space is more important.
Alternatives to Consider
HAVN BF 360
A newer airflow-focused alternative emphasizing large fans and strong component cooling in a different chassis architecture.
Thermaltake CTE E660 MX
A more specialized alternative for builders prioritizing extensive 420 mm liquid cooling and unconventional GPU mounting.
Fractal Design Meshify 3
A more conventional performance-tower alternative combining strong airflow with a less imposing overall footprint.
Who Is It Best For?
The Antec FLUX Pro is particularly well suited to performance-oriented builders who want strong cooling without immediately replacing or adding case fans. Its six-fan factory configuration, GPU-focused intake and large clearances make it a natural fit for powerful gaming PCs and high-heat enthusiast hardware.
It is also a strong option for builders who want large air coolers, 420 mm liquid cooling or several SATA drives. Users building smaller or lower-power systems may not need its full-tower size and capacity.
Rockin Box Tech Research Summary
The Antec FLUX Pro stands out primarily because its airflow claims are supported by independent testing. Its six included PWM fans are not simply an impressive specification: controlled testing shows that the factory configuration delivers excellent CPU and GPU cooling.
The two reverse-blade fans above the PSU shroud are particularly important. They provide direct airflow toward the graphics card, and testing with those fans removed demonstrated that they make a measurable difference to GPU temperatures.
Hardware support is equally strong. The case accommodates GPUs through 455 mm, CPU coolers through 190 mm and E-ATX motherboards through 285 mm wide. Front and top locations each support radiators through 420 mm.
The trade-off is size. The FLUX Pro is a genuine full tower weighing 13.6 kg before hardware is installed. Its PSU and drive configuration also deserves planning when combining long power supplies with several storage devices.
Owner feedback is broadly positive regarding cooling, space and ease of building, although isolated quality-control complaints are worth acknowledging rather than generalizing.
Overall, the research supports the FLUX Pro as a highly capable airflow-focused chassis whose strongest advantage is the combination of excellent factory cooling and enough internal room for substantial future hardware upgrades.
Research Sources
Primary specifications: Antec official FLUX Pro product documentation and specification sheet.
Independent technical testing: GamersNexus original Antec FLUX Pro thermal, noise, build-quality and configuration testing, with later 2026 FLUX Pro testing used as additional context.
Owner/community research: Builder discussions were reviewed for recurring satisfaction points, installation experiences, quality-control observations and practical concerns.
Research Disclosure
Each review is research-driven and based on manufacturer specifications, technical documentation and reputable published sources.
Products are not necessarily physically tested by Rockin Box Tech.
Cooling performance, temperatures, acoustics and overall build experience can vary according to installed components, fan quantity and speed, radiator configuration, graphics-card size, CPU cooler, power supply, cable routing, room temperature, dust accumulation and operating conditions.
Independent benchmark figures describe the specific test hardware, methodology and conditions used by the cited publication and should not be interpreted as guaranteed temperatures for every system.
Owner and community feedback represents individual user experiences and should not be interpreted as controlled laboratory testing or a measured product defect rate.
Product specifications, revisions, accessories, pricing and availability may change after this review is published.
